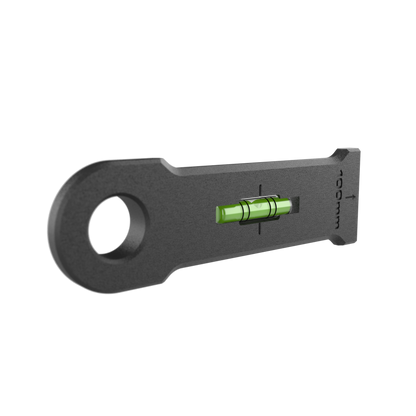

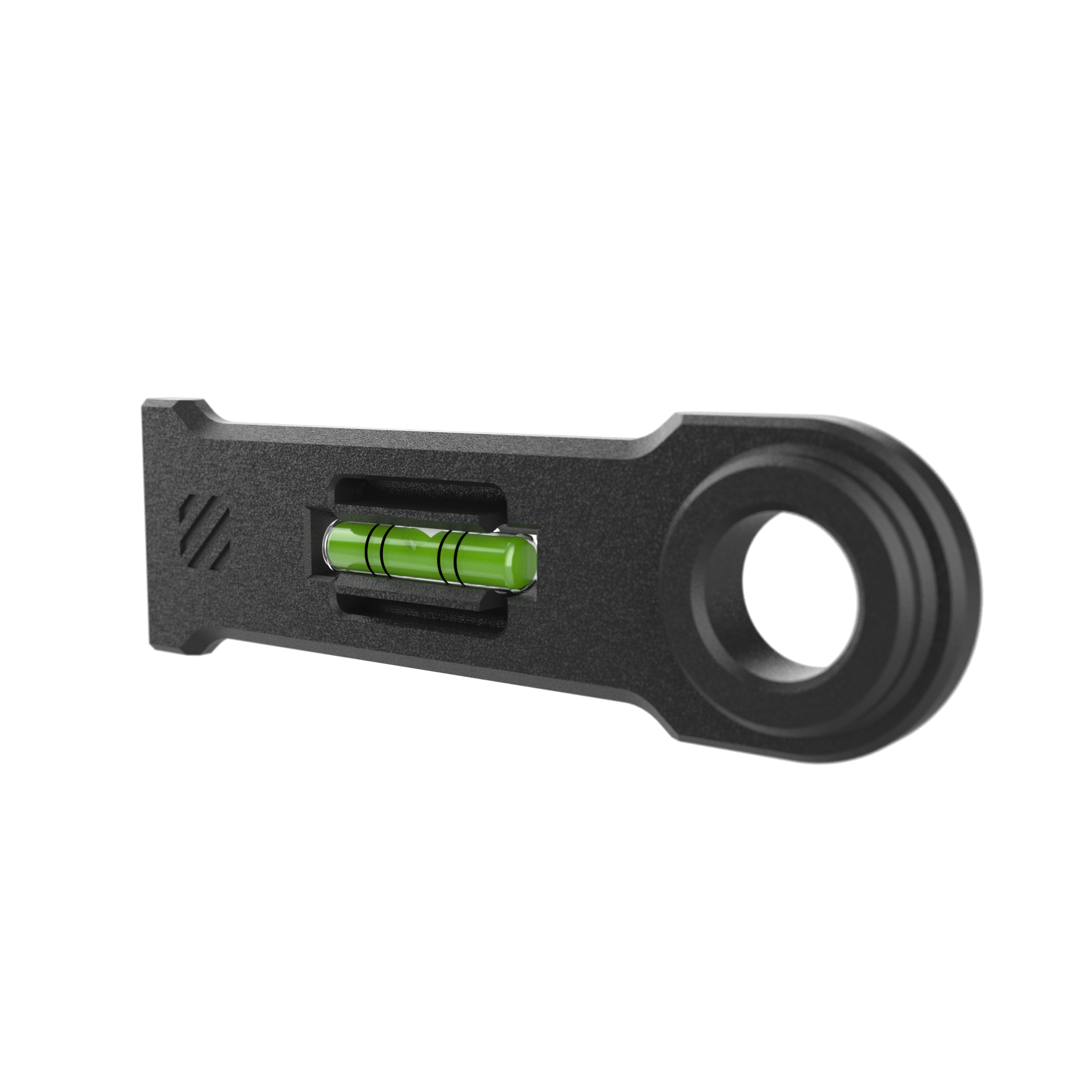

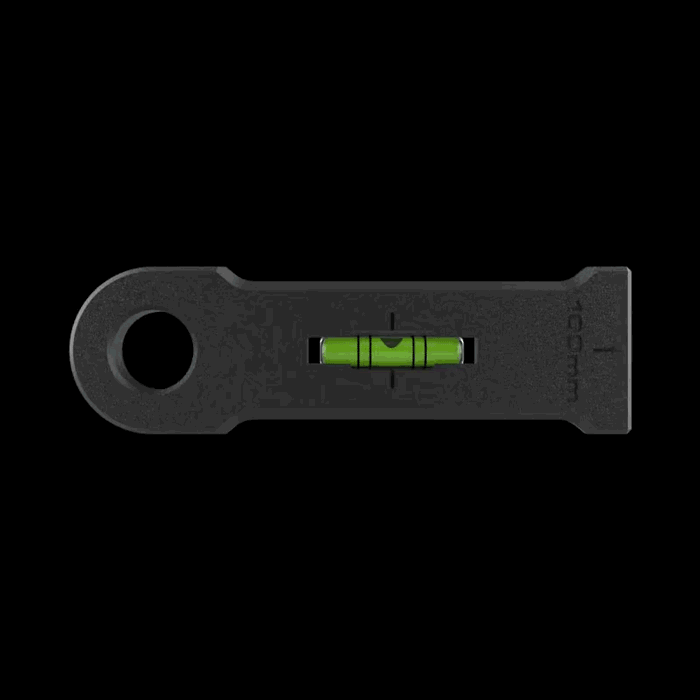

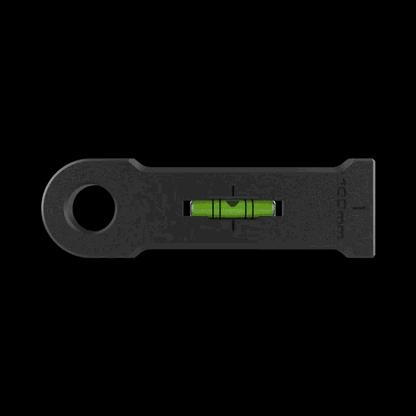

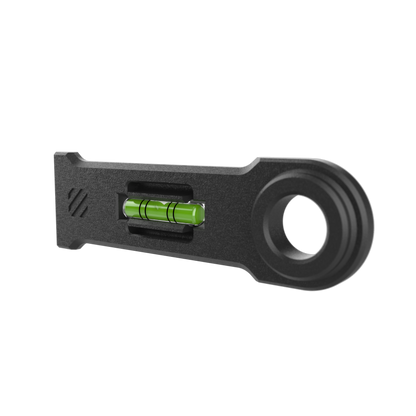

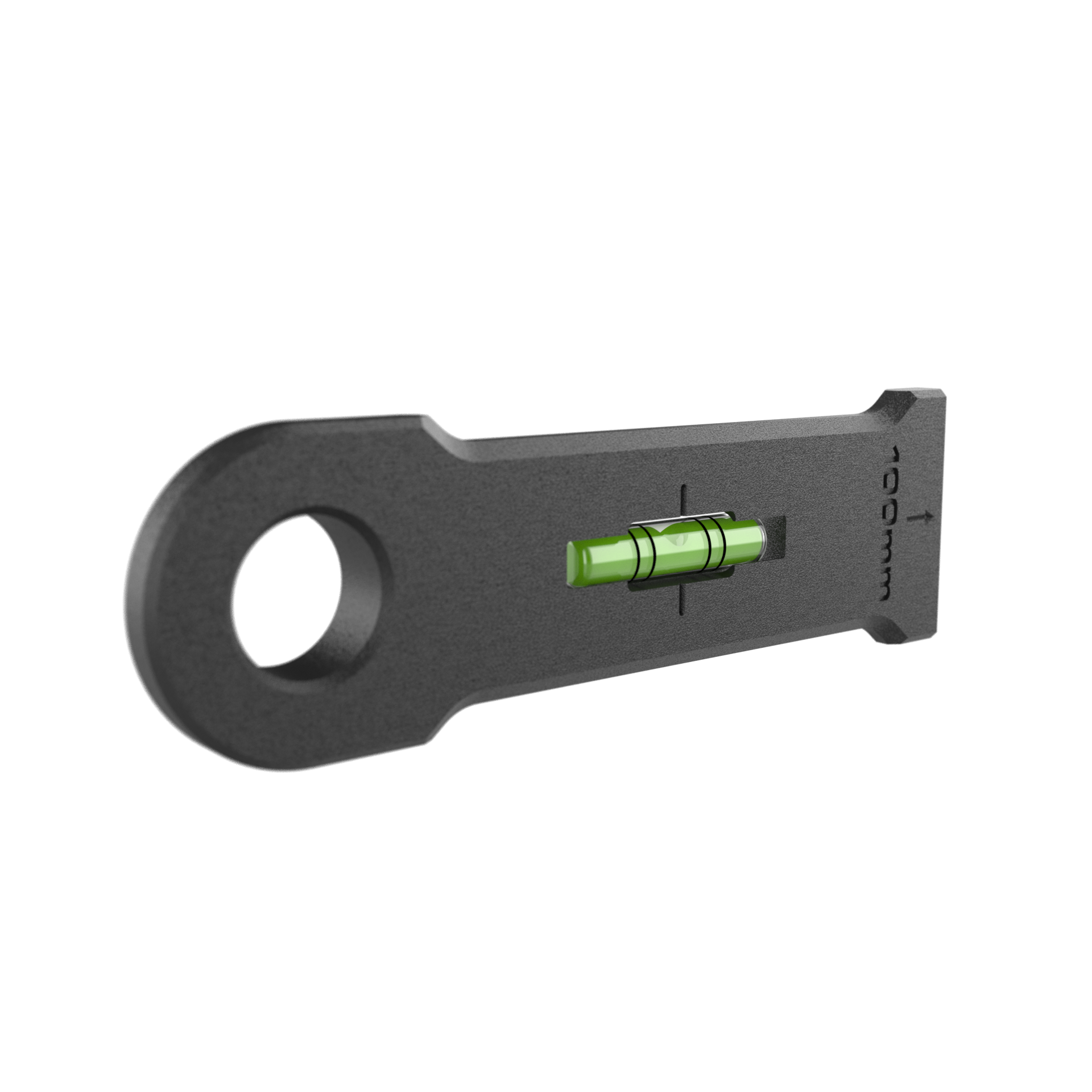

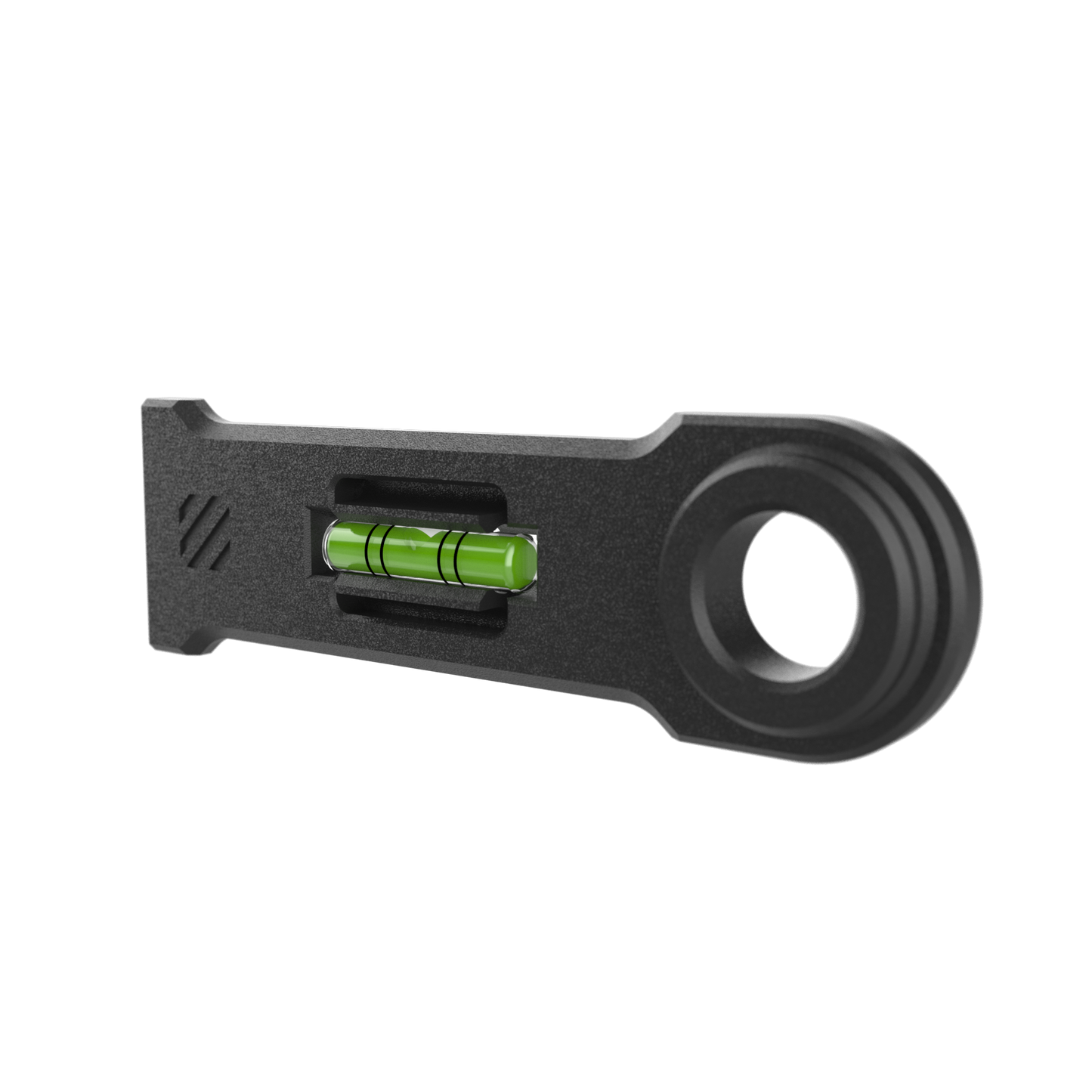

UCI Reach Gauge

A common question asked in the track cycling industry is if your cockpit reach is UCI legal. We developed this handy pocket sized tool to check!

How to measure:

1. Press the Reach Gauge over the axle nut
2. Align the gauge to level using the bubble indicator
3. Along the corner of a flat vertical surface such as a doorway or edge of a wall, place the leading edge of the gauge up against the surface. The gauge must contact the wall prior to the handlebars. If any point of the handlebars contacts the wall first, the reach is over the limit


Specifications:

• SLS Nylon 3D Printed
• Fits onto standard axle nuts
• Measures the UCI limit of 100mm in front of the axle
