M2 Frameset

Allow up to 10 extra working days for M2 Framesets to be dispatched to you.

_____________________________________

Engineered for Speed:

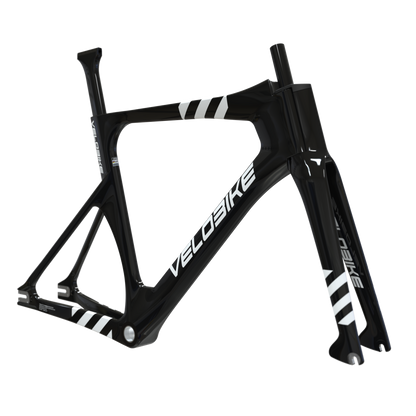

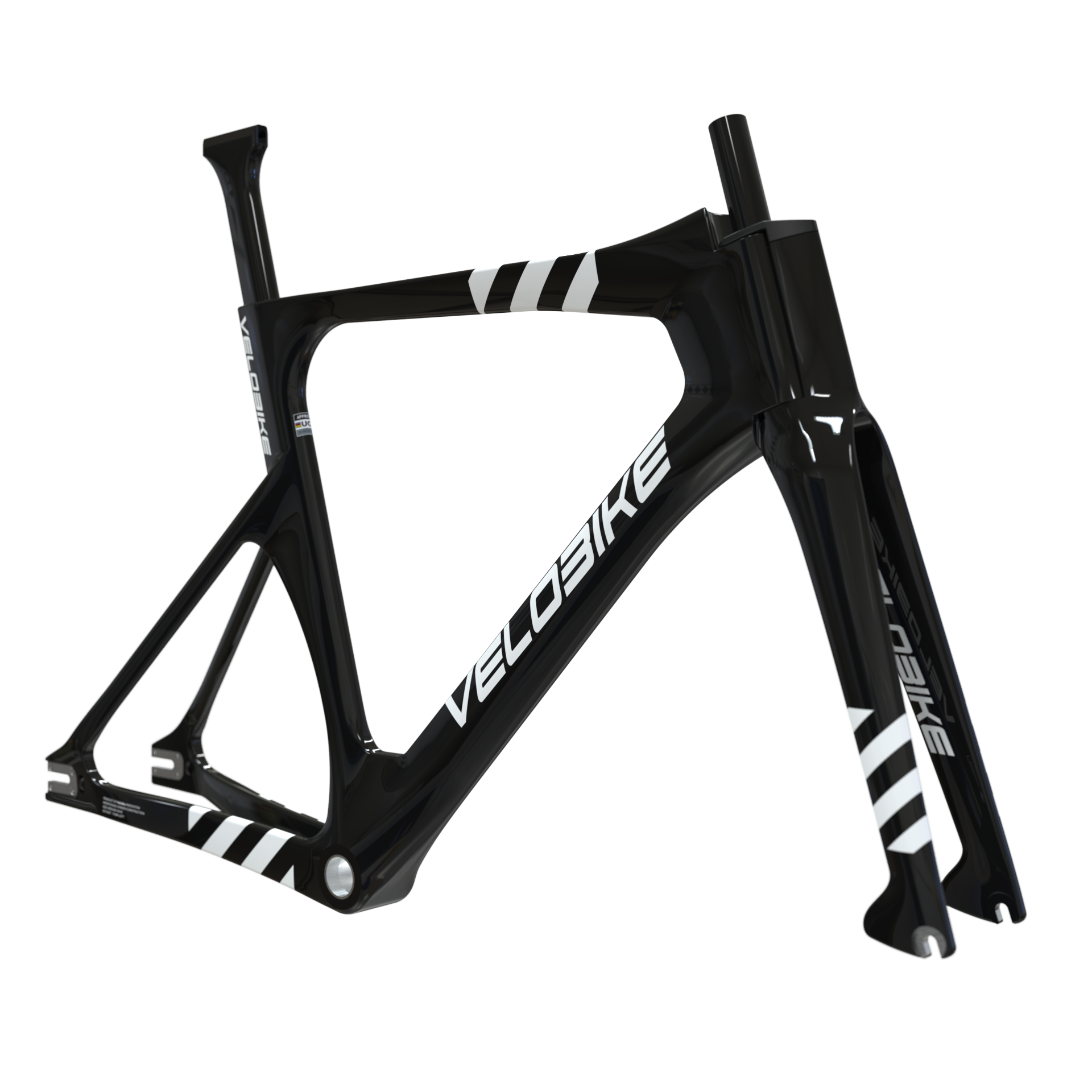

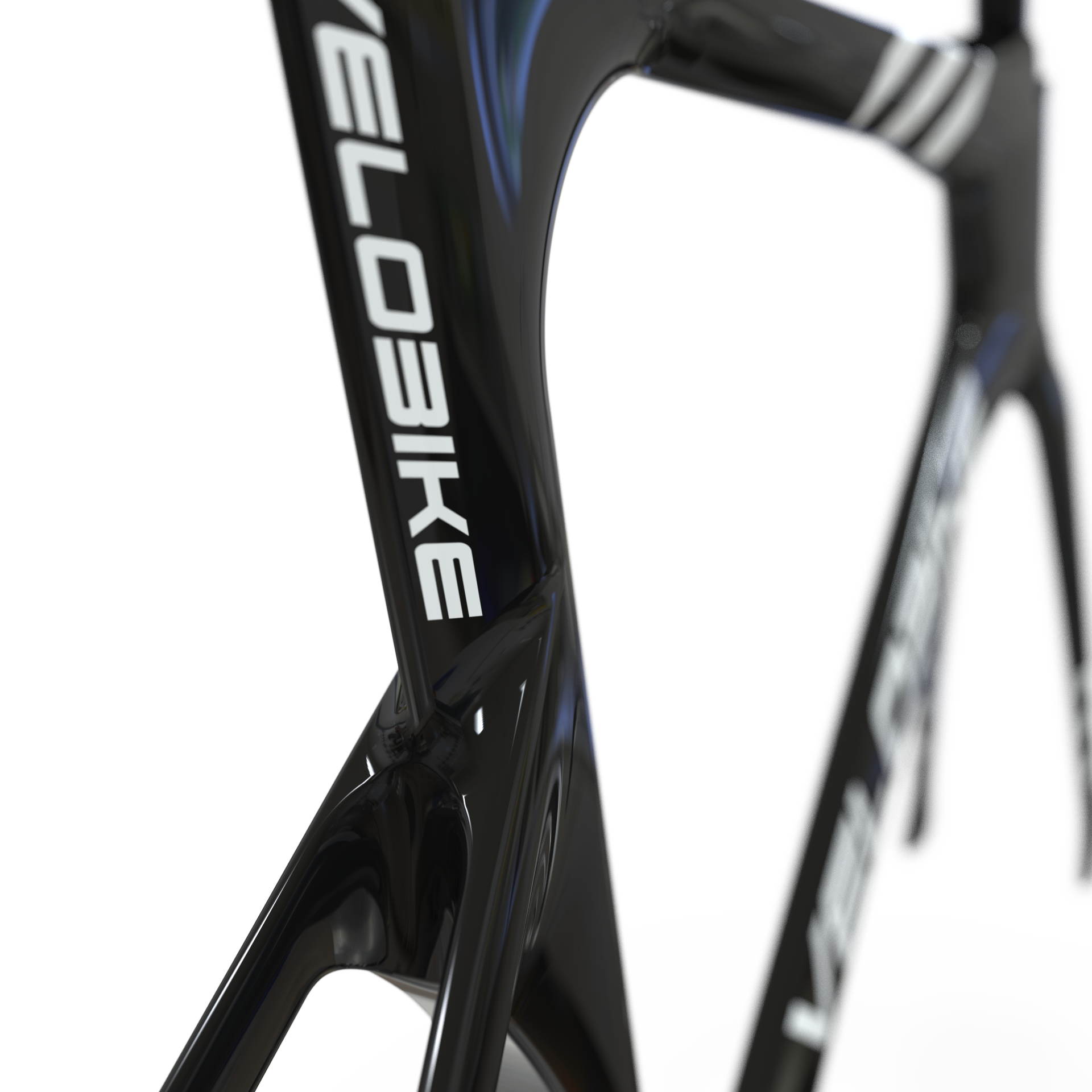

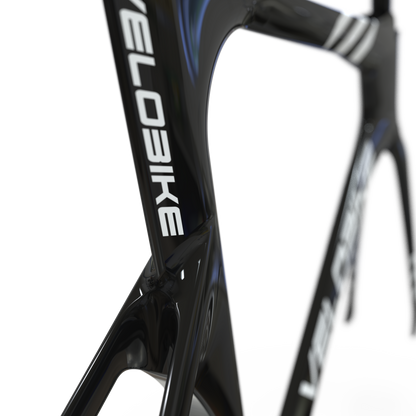

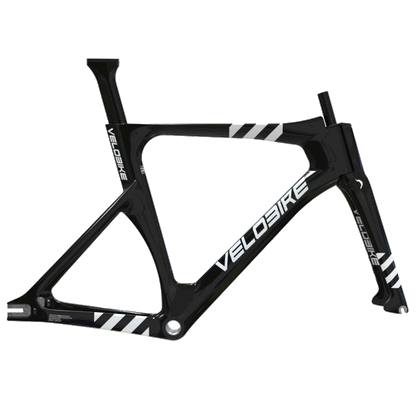

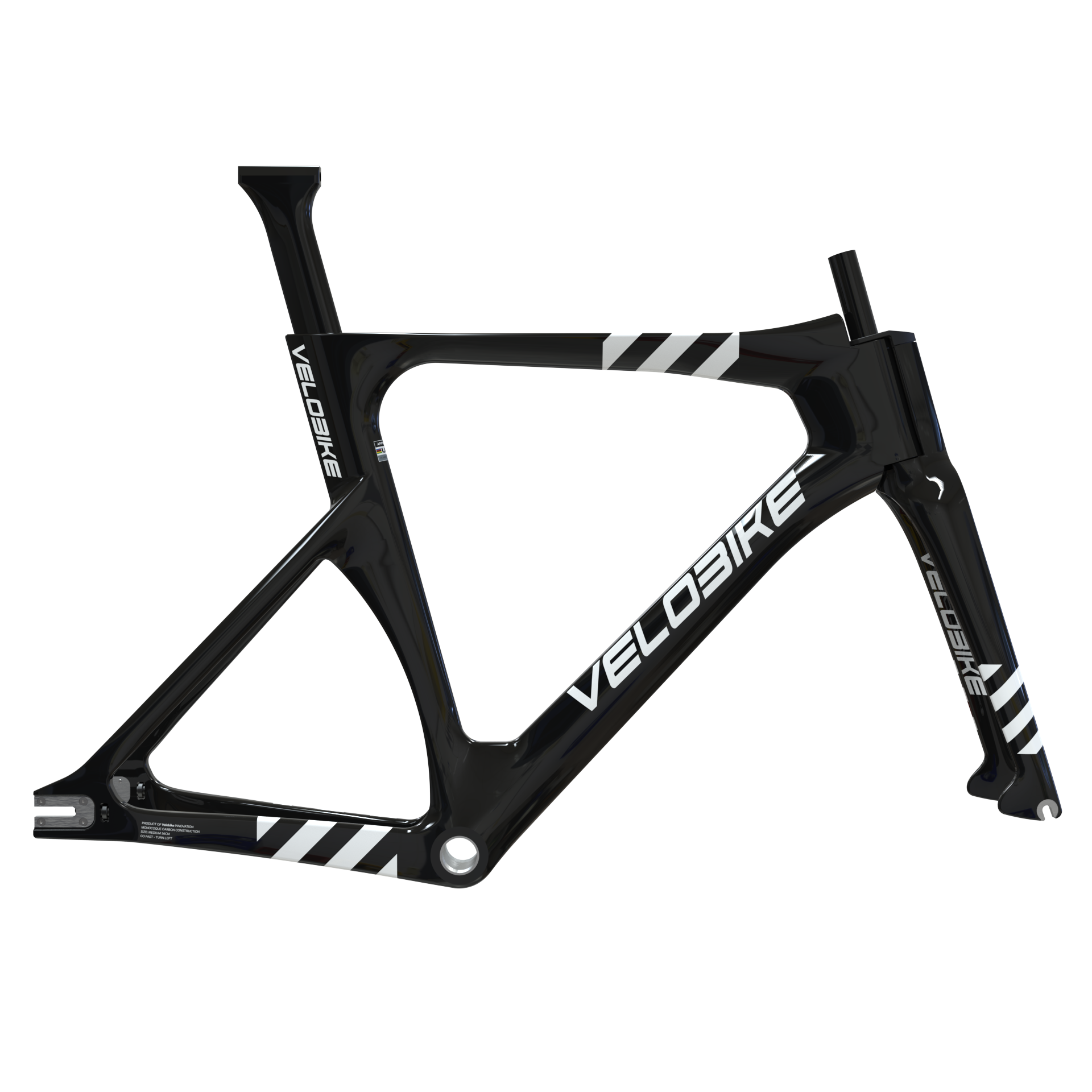

The Velobike M2 Frameset defines performance with its commitment to strength, stiffness, and aerodynamic efficiency. Crafted to slice through air with minimal resistance, its advanced monocoque composite structure guarantees an efficient power transfer directly from your pedals to the track, ensuring every unit of effort translates into speed.

Innovative Heritage:
Drawing from the plans of a renowned open-mould frameset factory, Velobike's exclusive manufacturing rights for this frameset design allow us to fine tune the frames construction to suit our performance requirements of our audience. Our exclusive carbon layup of the open-mould design employs additional T1000 carbon strategically placed for maximum benefit—fortifying strength and stiffness where it matters most while trimming excess weight elsewhere from the baseline construction. This meticulous balance is the result of lab and real world testing against out specified test requirements.

By choosing the Velobike M2 Frameset, you're not just investing in a high-performance piece of cycling technology; you're embracing a legacy of innovation, quality, and competitive excellence as we continue to enhance our capabilities at an Olympic level.

Enhanced Compatibility & Safety:
The 2022 overhaul of the front fork assembly broadens stem compatibility, significantly enhancing bike fit customisation and safety, a testament to our commitment to the athlete's performance.

Technical Specifications:

• UCI approved: Frame and Fork certified for competition.
• Size Range: XS to L, accommodating a broad spectrum of cyclists.
• Material Excellence: Utilizes T1000 carbon in critical areas complemented by T700 carbon fibre.
• Finish: Features a ceramic gloss finish over exposed UD carbon (2024 livery), combining durability with a sleek, modern look.
• Weight: Frame and fork weigh approximately 1850g ± 50g (size L), achieving an optimal balance of strength and lightness.
• Safety Compliance: Exceeds ISO 4210 standards, underscoring our commitment to safety and quality.

Integration and Versatility:

• BSA Threaded Bottom Bracket: For reliable performance and component integration.
• Chainring Clearance: Accommodates up to 70 tooth chainrings, supporting a 42mm chainline.
• Steerer Tube: Standard 1 1/8" to fit many common stems
• Dropout Specs: M9x100mm bolt on front wheels and M10x120mm bolt on rear wheels .
• Tire Flexibility: Supports up to 700x25c, allowing for optimal tire selection.
• Saddle Mounting Options: Includes steel saddle rail mount, with a carbon option available for enhanced athletes.

Frameset includes:

• UCI approved M2 Frame x1 (of chosen size)
• UCI approved M2 Fork x1 (of corresponding size to the frame)
• M2 seatpost x1
• Saddle clamp (steel saddle rails) x1
• Seatpost clamp x1
• Rear dropout plates x1 pair
• Headset bearings and bearing spacers x1 set
• Headset compression plug x1

Optional extras and spare parts:

• M2 Fork
• M2 seatpost
• Carbon saddle rail clamp
• Seatpost clamp
• Rear dropout plates
• Headset Bearings and bearing races
• Headset spacers
• Dropout protectors

Global Delivery: Manufactured with care and precision in China and shipped directly to you, ensuring prompt delivery without additional costs.

Framesets are delivered via trusted couriers like UPS or FedEx. Please allow for up to 10 extra days for shipping the framesets over the rest of the goods available through the store. More information on shipping can be found here: Shipping Policy

Download the Velobike M2 user manual here

FAQs:

Is the frameset UCI Legal? Yes. The frameset (frame and fork) has gone through the full ISO and UCI certification process to ensure safety for competition use. Updates to the fork design were required from the original open-mould design to quality for this approval.

What is the availability for the framesets? The Velobike M2 framesets are made in batches. Before each batch ships the framesets are available as a pre-order. Its isn't uncommon for each batch to be fully allocated while under preorder before they ship. Delivery estimates are noted at the top of the page.
